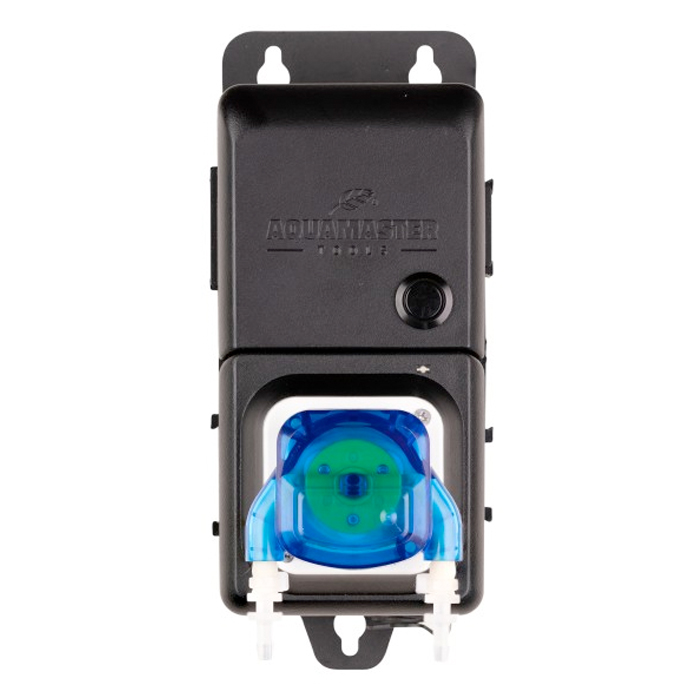

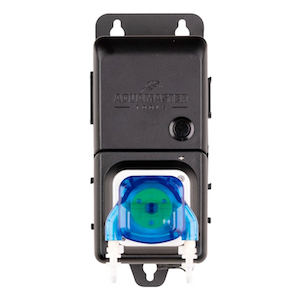

Aqua Master Tools C10 Peristaltic Pump Unit (Single)

C10 pump unit 1x peristaltic pump for pH or nutrient dosing
The C10 is a compact dosing pump with one peristaltic channel, designed for precise dosing of a single nutrient (EC) or for pH adjustment. The standard dosing rate is 1.5 ml per second.

Connection and Use Cases

The C10 can be used in different configurations, depending on the application:

• As a pH dosing pump (for pH minus or pH plus):
  → Connect directly to the left UTP port on the controller
  → The function (pH minus or pH plus) can be selected in the controller menu
  → Recognized as the pH pump

• As an EC dosing pump (for 1 nutrient line):
  → Connect directly to the right UTP port on the controller
  → Recognized as Pump 1

• As an extension to a C30 (for 4 nutrients total):
  → Connect to the right UTP output on the C30
  → Recognized as Pump 4

Mechanical connection to other units is possible via the side slide rail. The UTP port is located on the bottom of the unit.

A maximum of 5 EC pumps and 1 pH pump can be connected per controller.

Manual Operation

The pump includes a manual priming button, ideal for filling or emptying the tubing during installation or maintenance.

Includes

What's in the box:

• 1× C10 dosing unit (1 pump)
• 1× Tubing (3 meters)
• 1× UTP cable (150 cm)
• 1× International power adapter

Specifications

TBD
